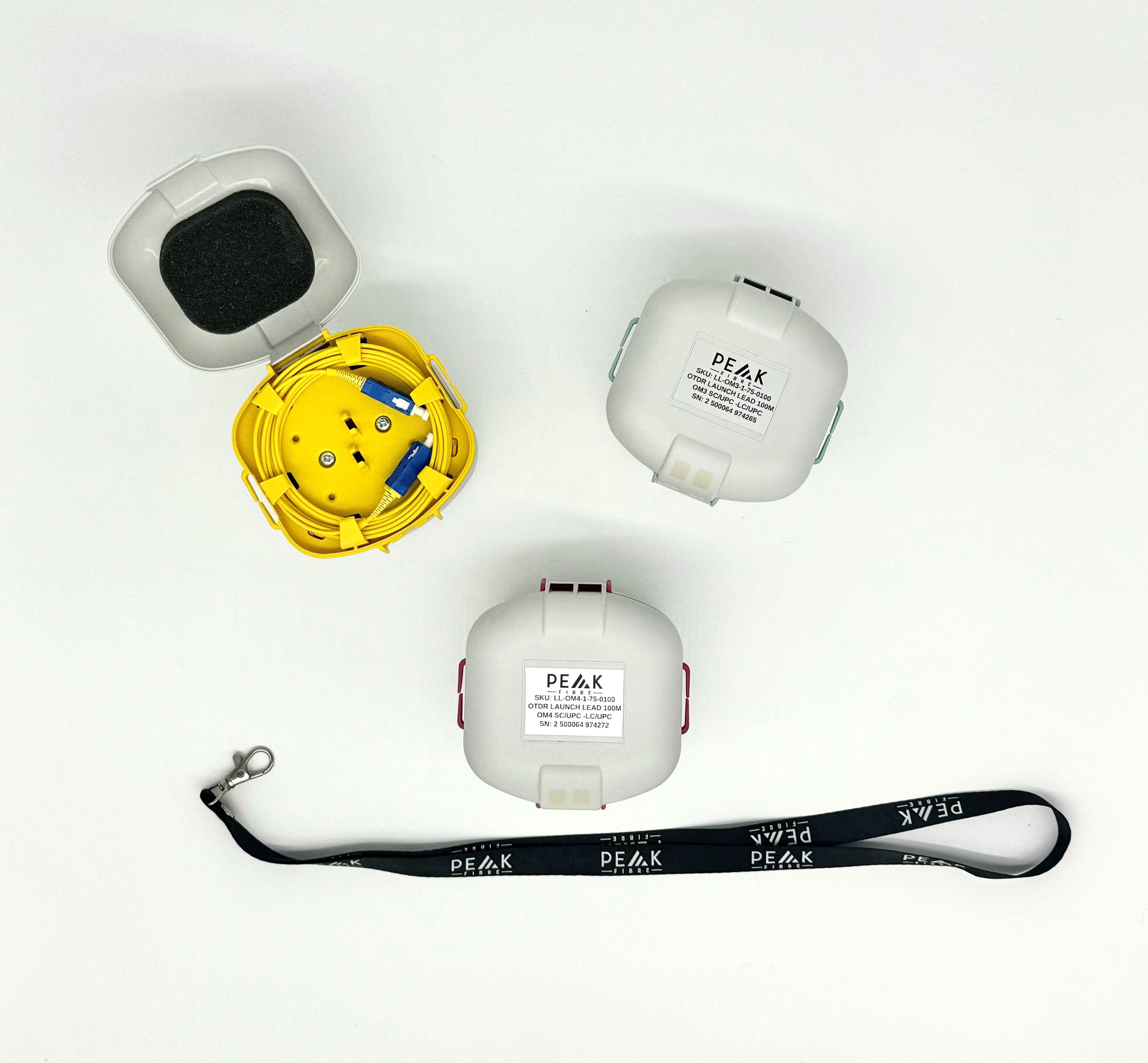

• Eliminates dead zone in your OTDR and guarantees accurate and reliable measurement

• Housing equipped with a magnet, Launch Lead can be easily mounted on a rack

• Shoulder strap for easy transport, moving and measurements

• Terminated with master class connectors available in a wide range of types

• Colour identification of the fiber and connector polishing type

Dimensions (w)x(h)                                                 107x86 mm

ILMAX @ 1310 nm (SM fiber)                                ≤ 0.35 dB/km

ILMAX @ 1550 nm (SM fiber)                                ≤ 0.22 dB/km

ILMAX @ 850 nm (MM fiber)                                ≤ 2.50 dB/km

ILMAX @ 1300 nm (MM fiber)                              ≤ 0.70 dB/km

SM Connector Insertion Loss (IEC 61300-3-4)      ≤ 0.15 dB

MM Connector Insertion Loss (IEC 61300-3-4)     ≤ 0.15 dB

Return Loss (IEC 61300-3-6)                                   RL ≥ 65 dB (APC);

                                                                                RL ≥ 55 dB (UPC);

                                                                                RL ≥ 35 dB (PC);

Operating temperature                                           -40 do +550C

Length of input and output fiber                            1.5 m
